ISO 9001:2015 aligned quality management

Precision engineering and conveyorized powder coating solutions.

JSSEPL manufactures sheet metal pressed components, machined components, assemblies, prototype parts, tooling, and powder coated parts with a fully automatic zinc phosphating line.

Explore Capabilities View Product Range

0.8-30 mm Sheet metal capability

7,000 sq. ft. Manufacturing facility

16+ years Industry experience

Total Conveyor Length 67 m

Volume per Shift 5715 sq. ft.

Pre-treatment 8 tanks + dry off

Coating Booths 2 nos.

Cycle Time 82 minutes

DM Water 25000 LTR

Company Introduction

Engineering products built with process control, tooling strength, and finish quality.

Jai-Shree Swami Samarth Engineering Product Pvt. Ltd. manufactures precision engineering products including sheet metal pressed components, machined components, powder coated parts, assemblies, press tools, dies, jigs, and fixtures.

The company works toward complete customer satisfaction through continual improvement, enhanced work practices, and an effective quality management system.

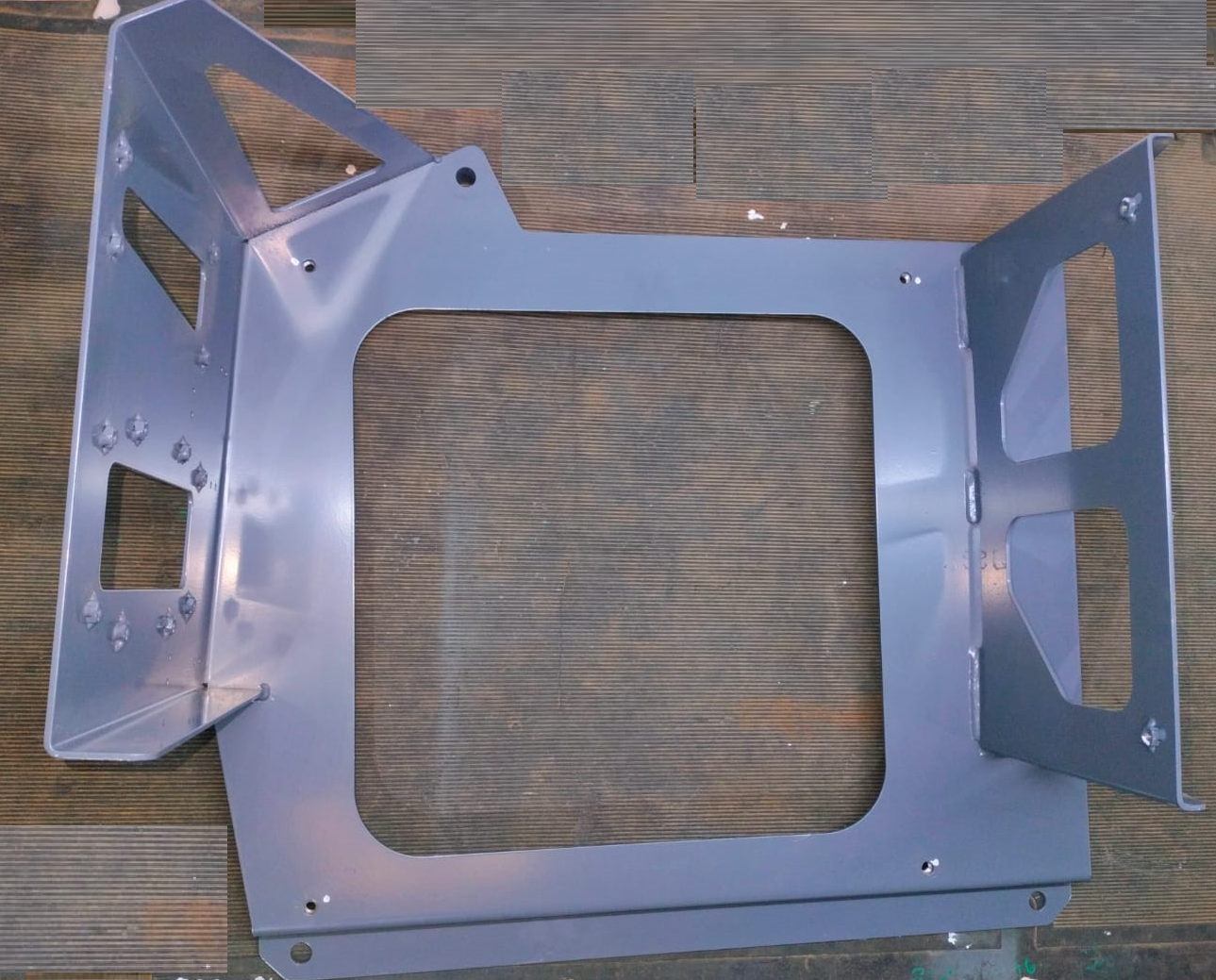

Sheet Metal Pressed Components

Manufacturing capability for 0.8 mm to 30 mm thick materials.

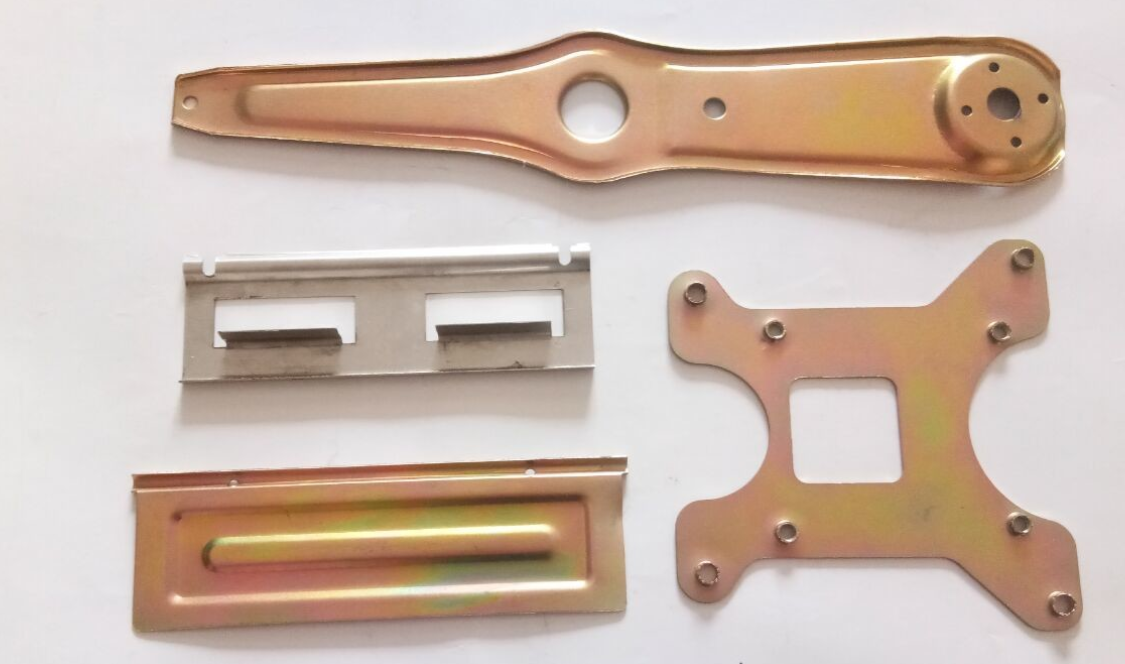

Tooling Manufacturing

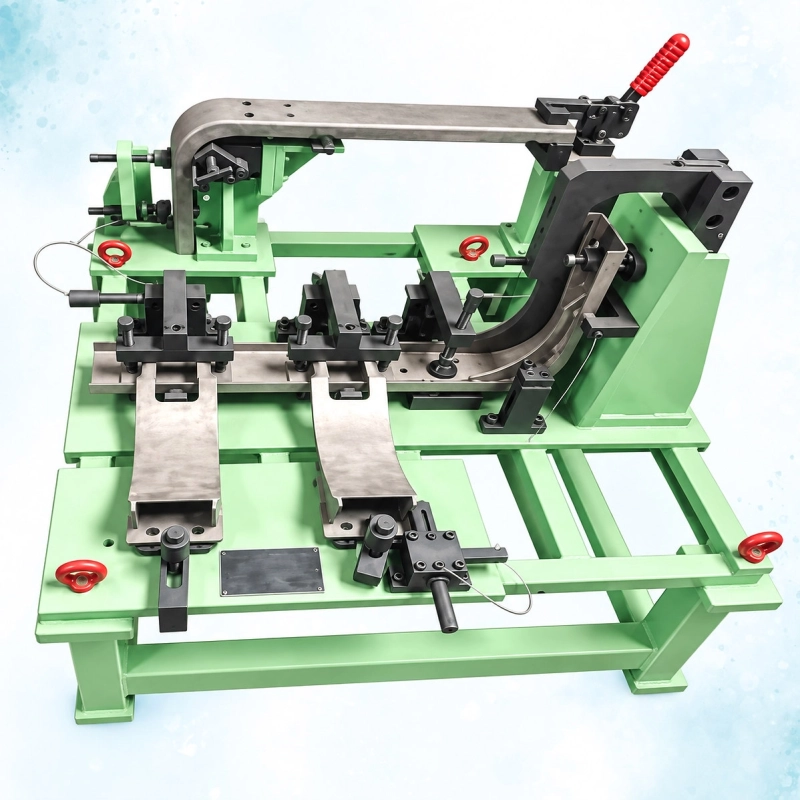

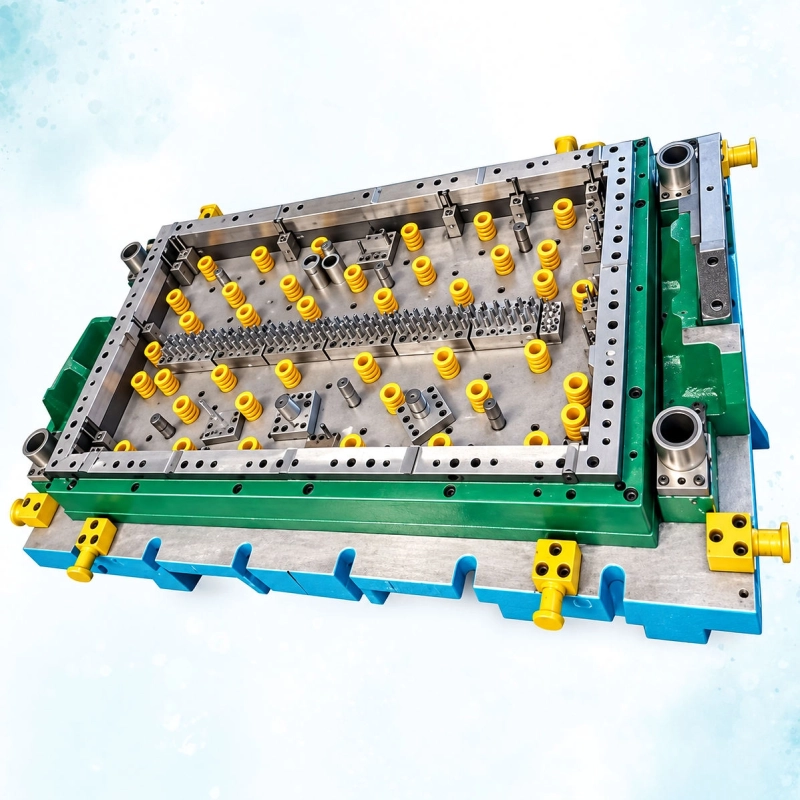

Press tools, dies, jigs, and fixtures with high accuracy.

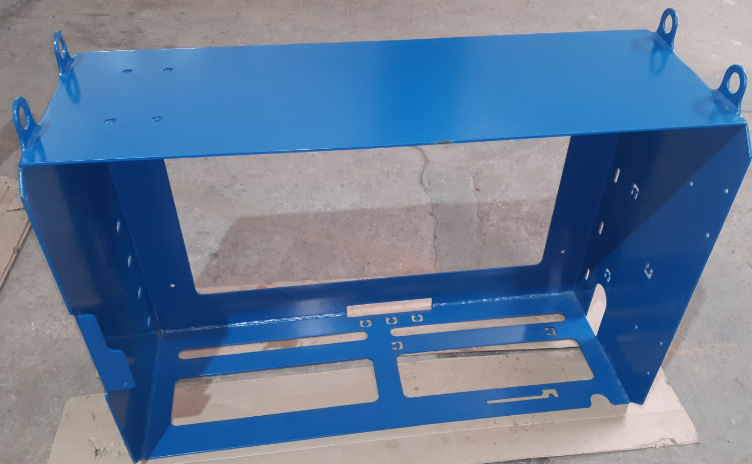

Prototype Development

Rapid prototype parts manufacturing for new product development.

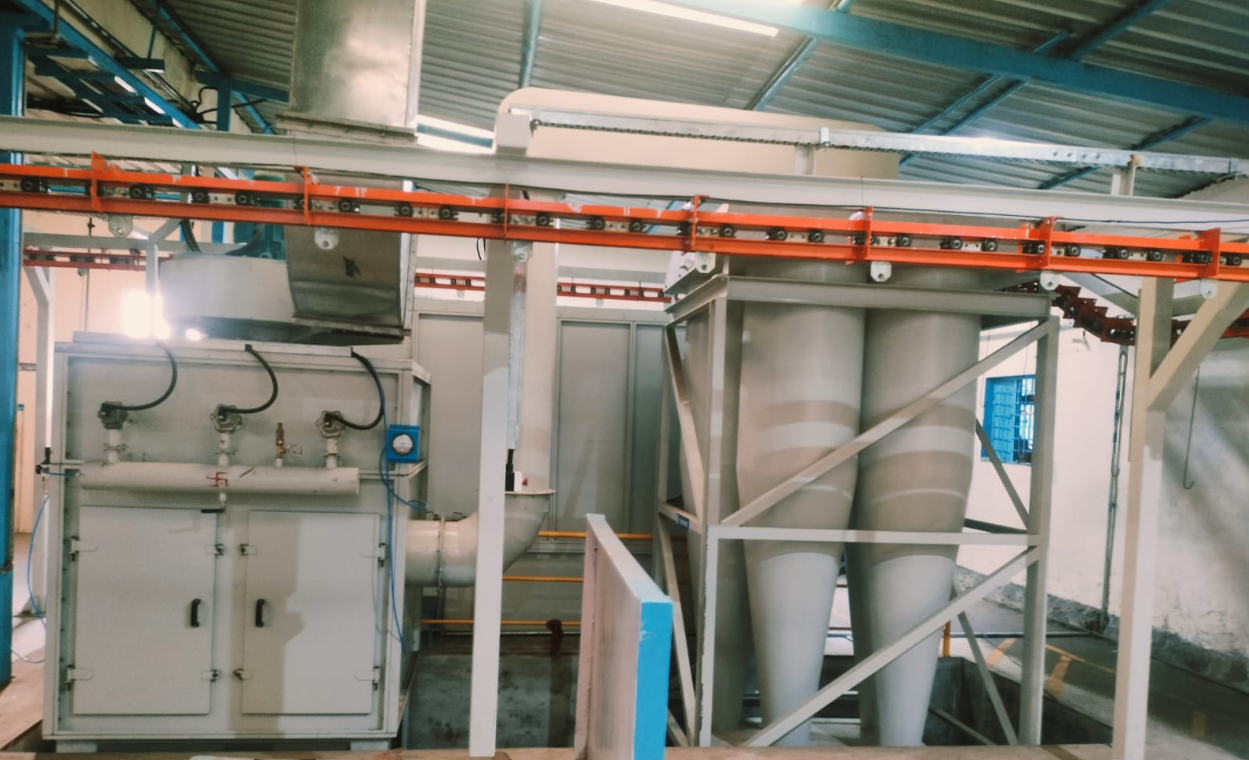

Powder Coating Facility

Automated zinc phosphating and powder coating for corrosion resistance.

Technical Capabilities

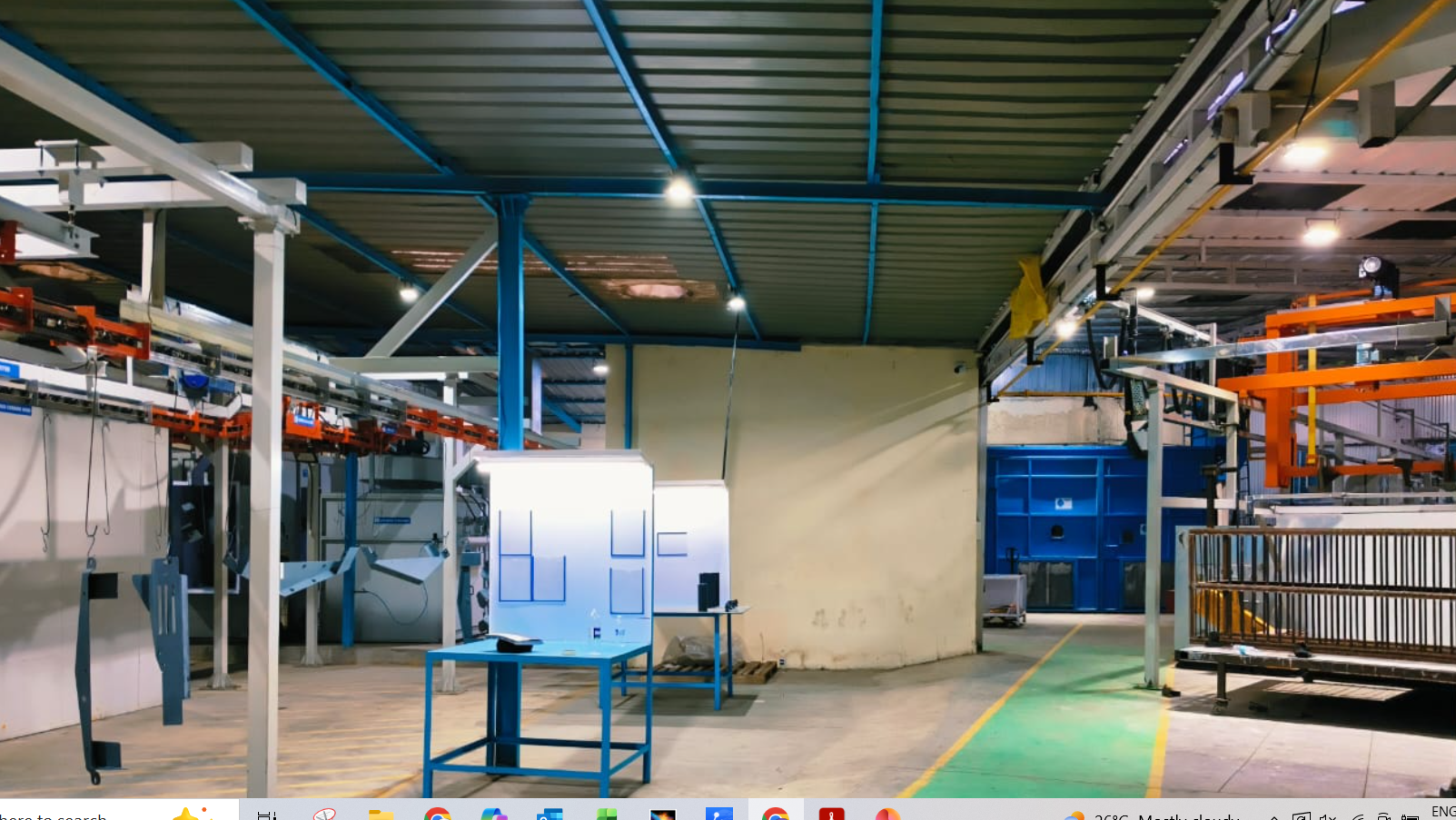

Integrated surface preparation and powder coating line.

From hot-dip zinc phosphate pre-treatment to shot blasting, electrostatic application, baking, and inspection, the process is set up for repeatable output.

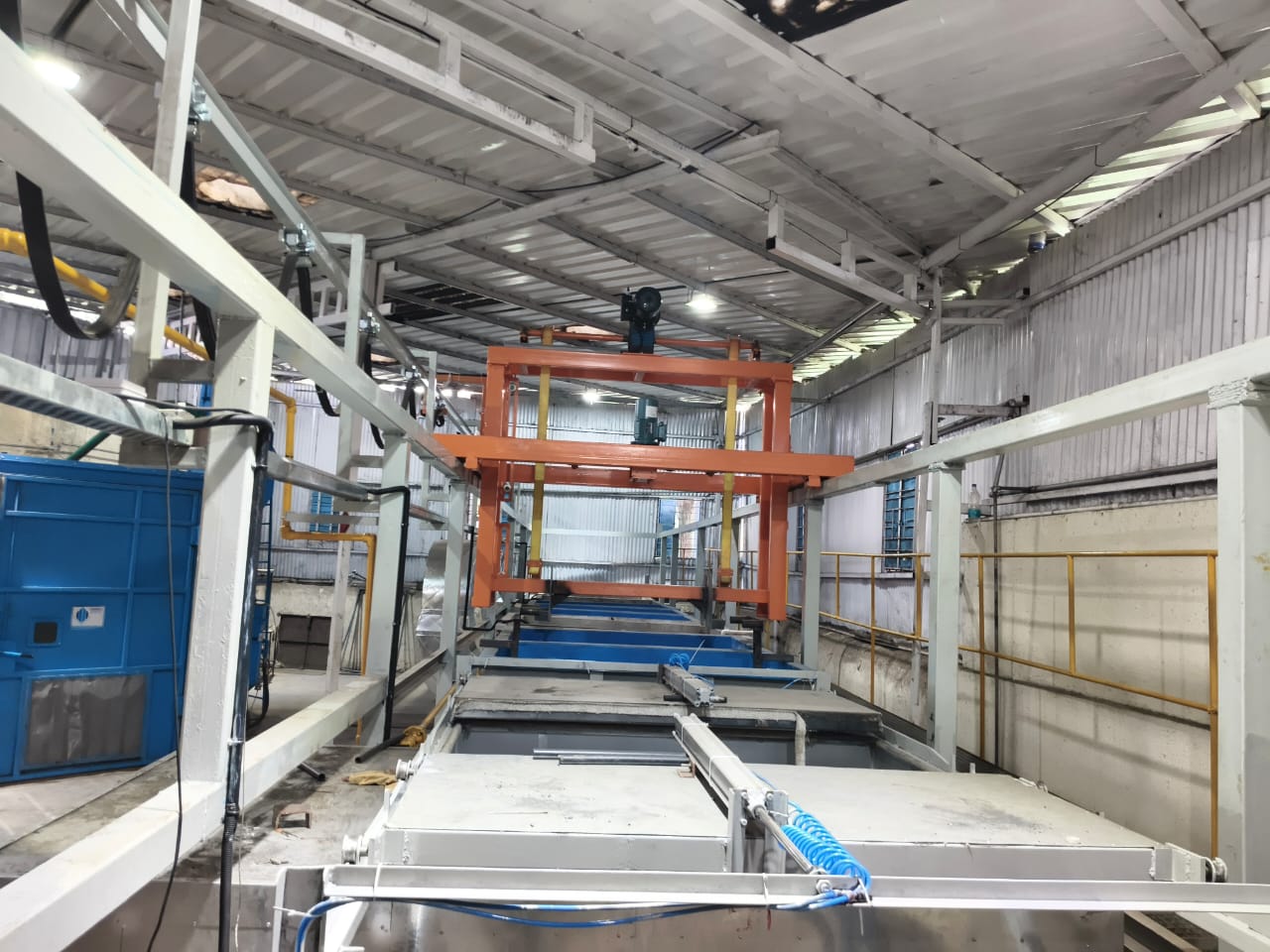

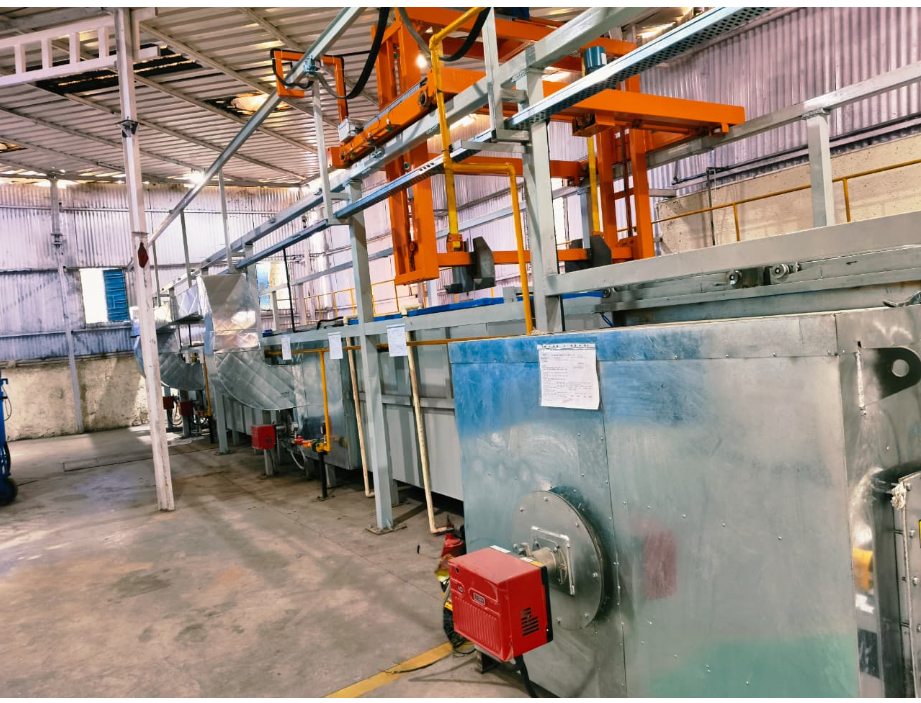

Zinc Phosphating

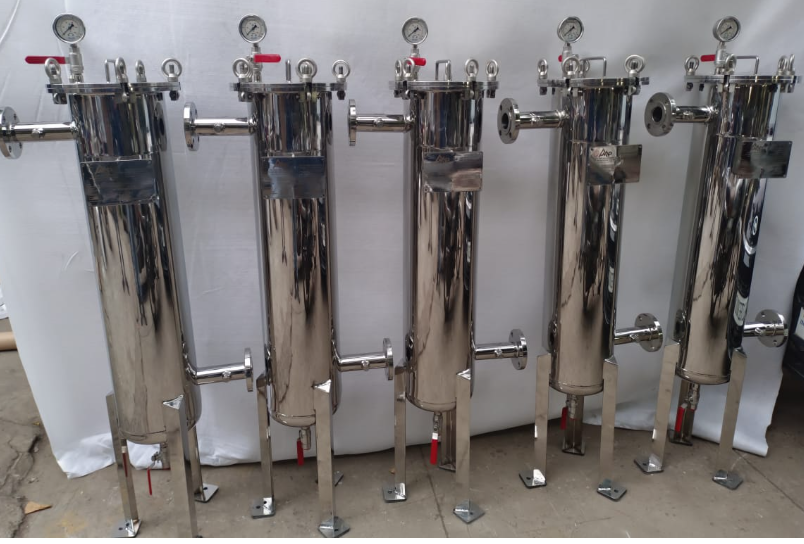

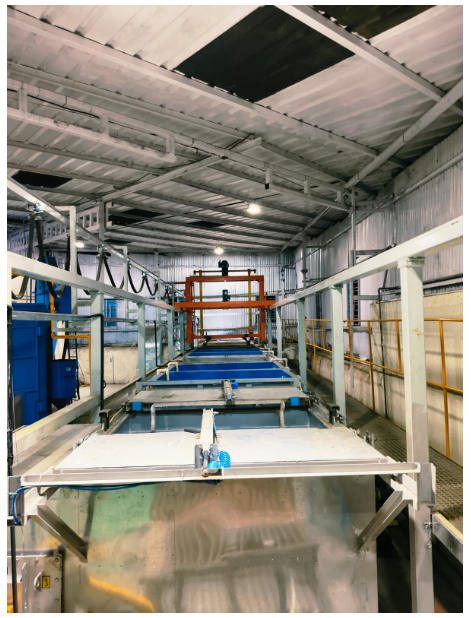

Hot dip, fully automatic zinc phosphate pre-treatment line with bag filtration and circulation.

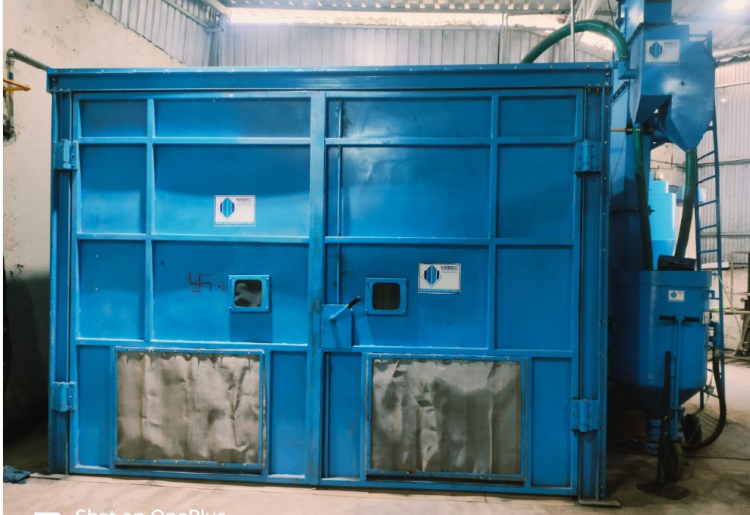

Shot Blasting

Semi-automatic booth with 1000 kg hopper and 15 sq. mtr. batch volume.

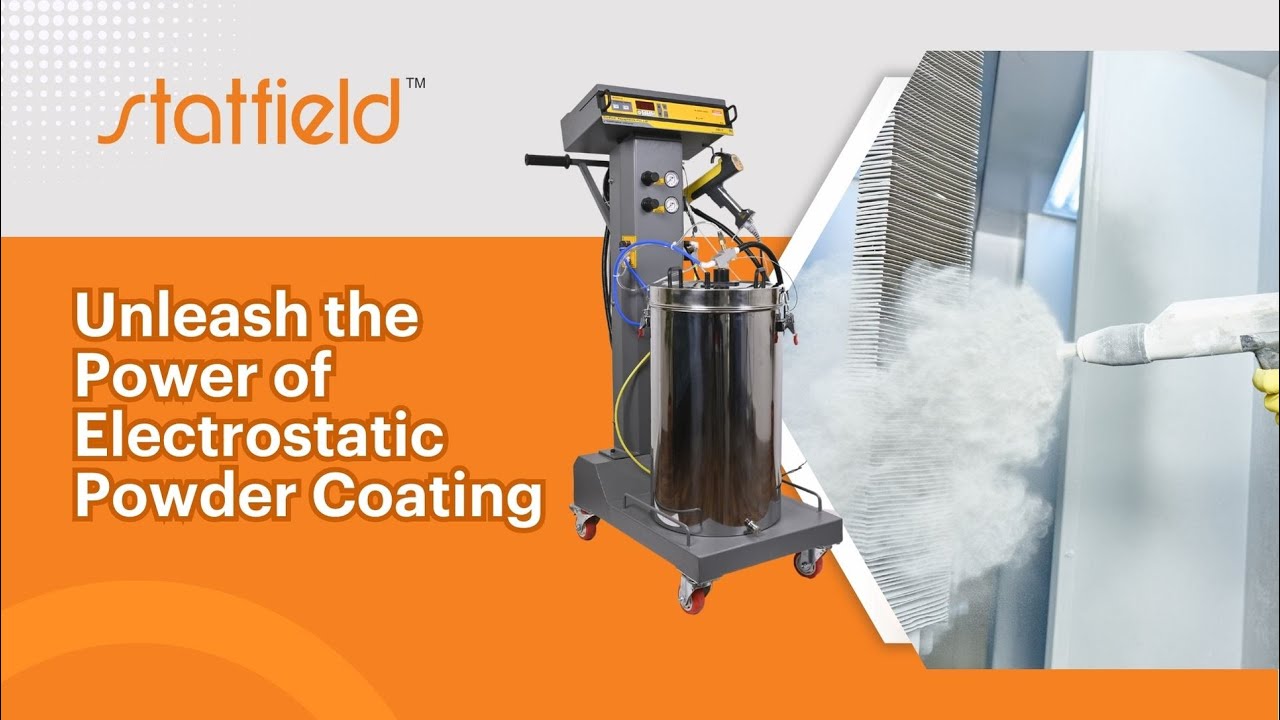

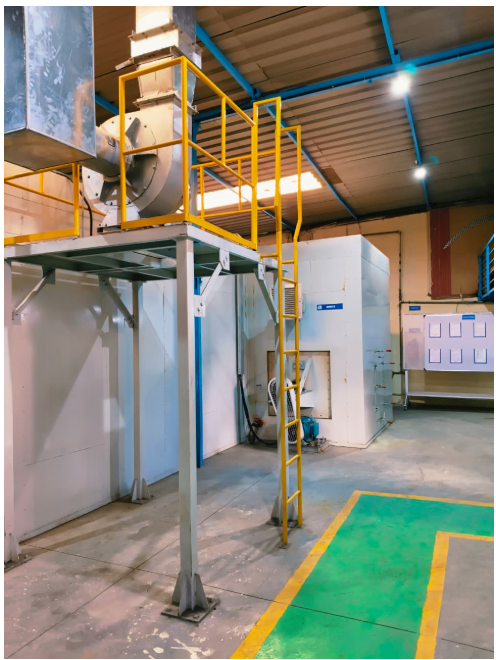

Powder Applicator

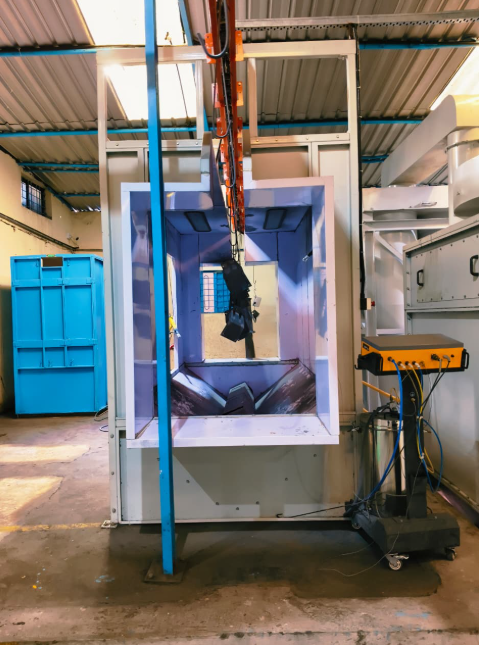

STATFIELD Magnum II electrostatic powder coating equipment.

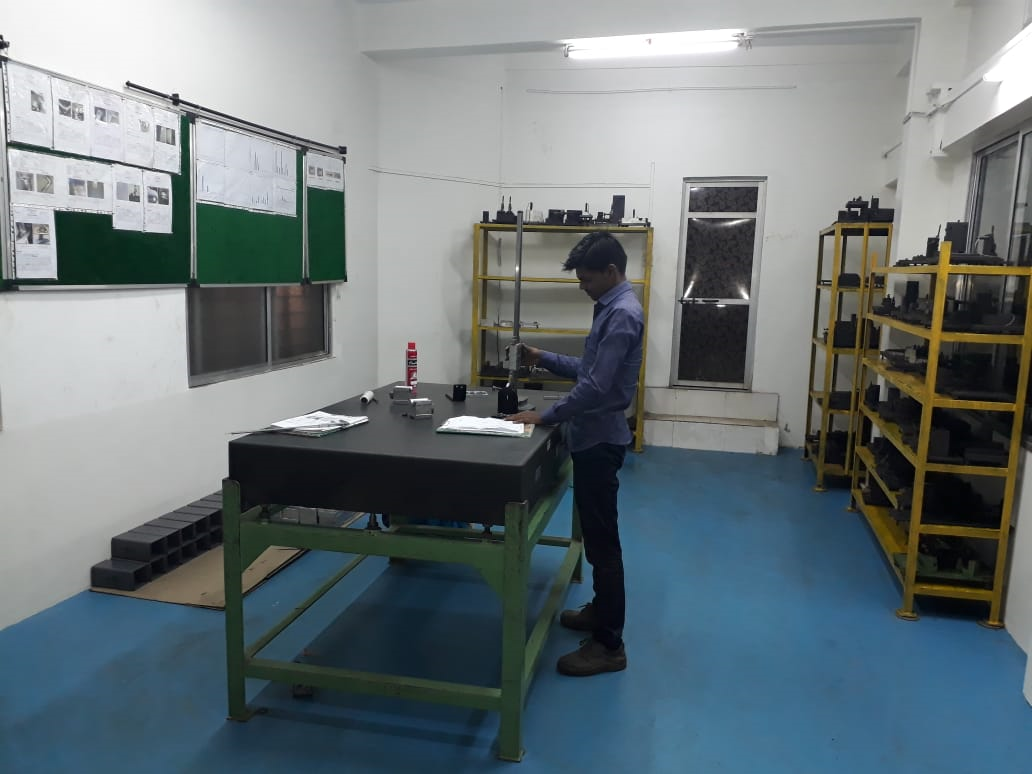

Inspection Area

Controlled inspection area supporting product verification and dispatch readiness.

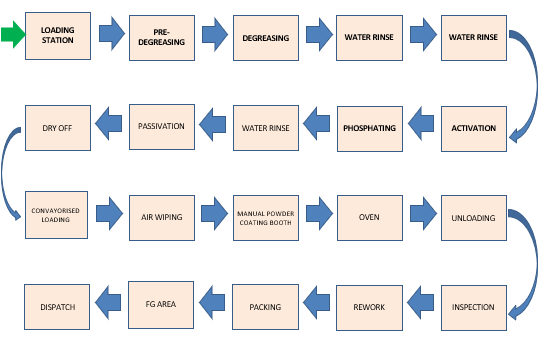

Process Flow

Process discipline from surface cleaning to final inspection.

Surface cleaning, degreasing, rinsing, activation, zinc phosphating, passivation, and dry off.

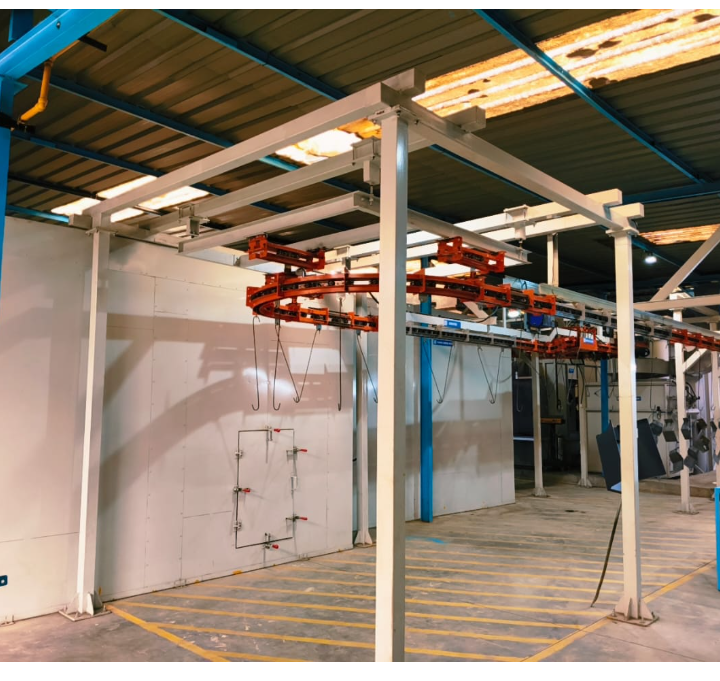

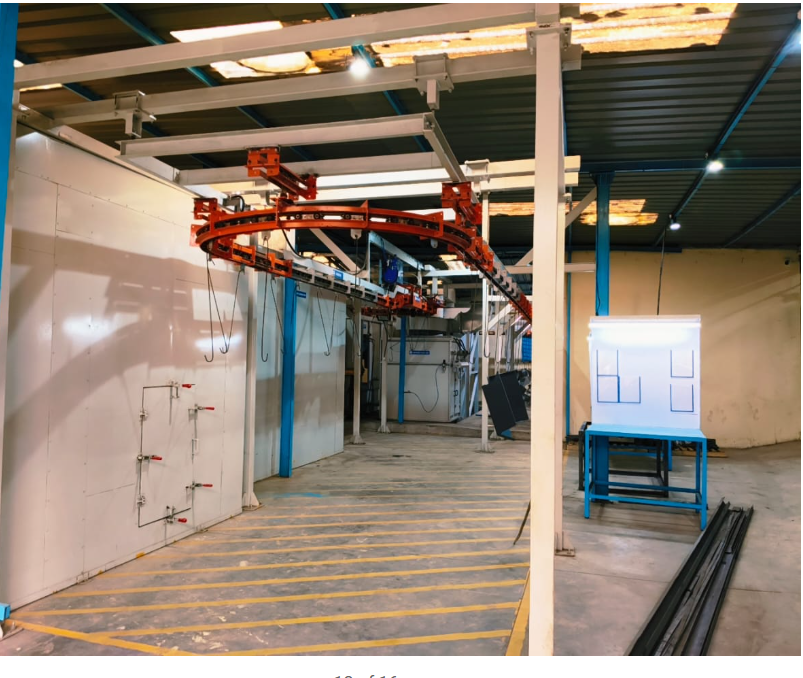

Shot blasting and automated conveyor transfer for repeatable material handling.

Electrostatic powder application through two coating booths.

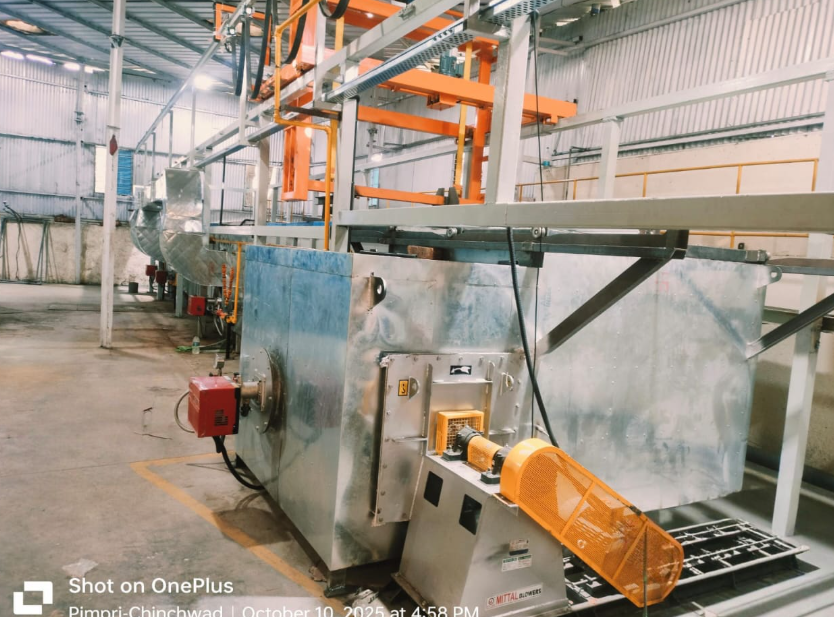

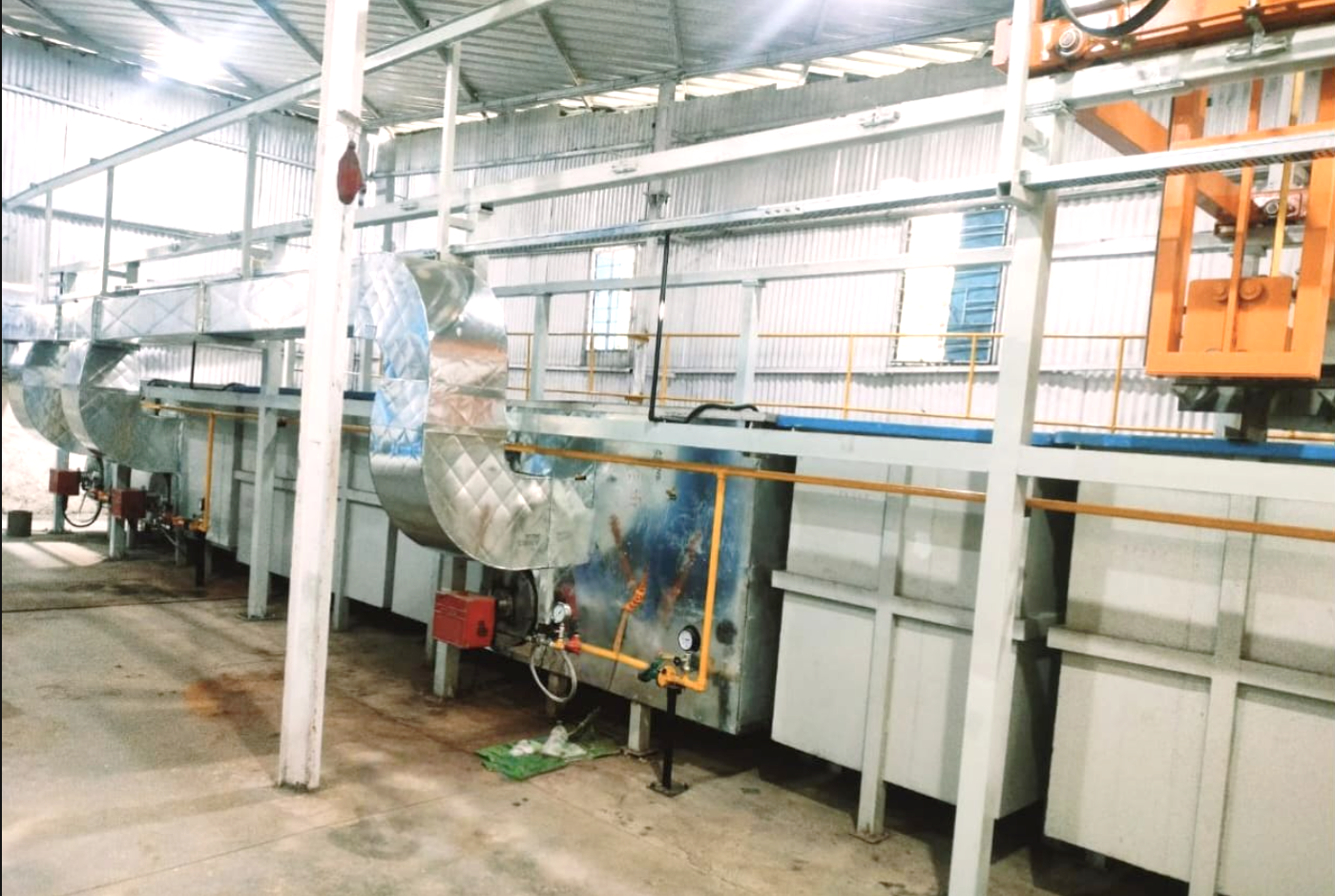

LPG fired baking oven, inspection area, and QA lab checks before supply.

Plant Specifications

Built for controlled throughput and coating consistency.

Conveyor speed, pitch, booth size, baking temperature readiness, and fuel consumption are tracked as part of the production setup.

Conveyor Speed0.8 m/min variable

Conveyor Pitch600 mm

Volume per Cycle720 sq. ft.

Booth Cycle Time7 minutes

Oven Size9250 × 3400 × 2913 mm

Fuel Consumption16-18 Kg/Hr

Key Product Range

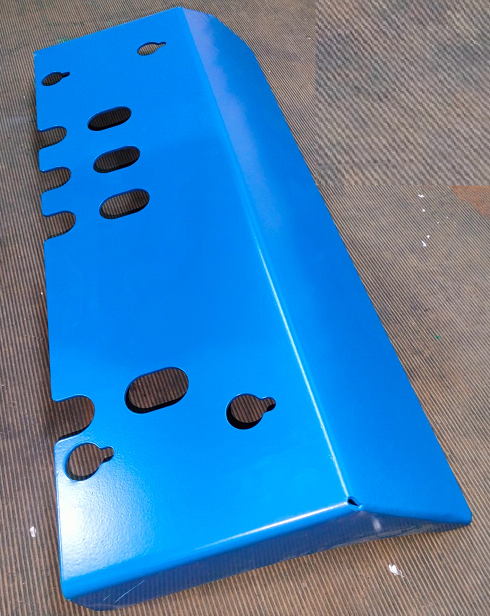

Pressed, fabricated, assembled, and coated parts for demanding applications.

Product references from the presentation include M&M, Wirtgen Group, Kirloskar, Force Motors, Tata Motors, Banco, and Standard Radiators applications.

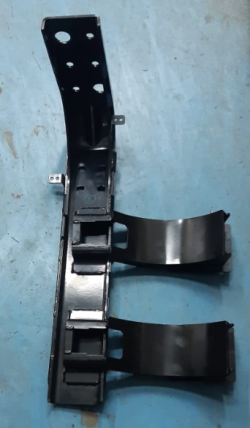

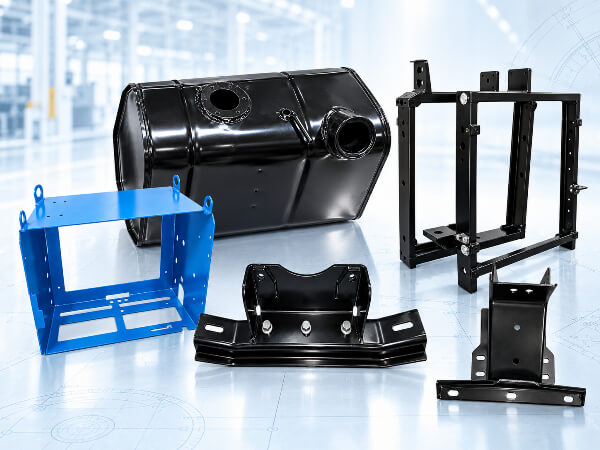

Automotive and industrial assemblies

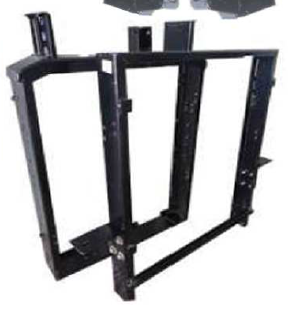

Fuel tanks, brackets, frames, guards, covers, and mounting assemblies.

M&M

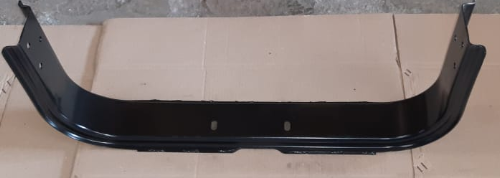

Bottom brackets, DPF mounting brackets, transmission side brackets, and CNG cylinder mounting assemblies.

Wirtgen Group

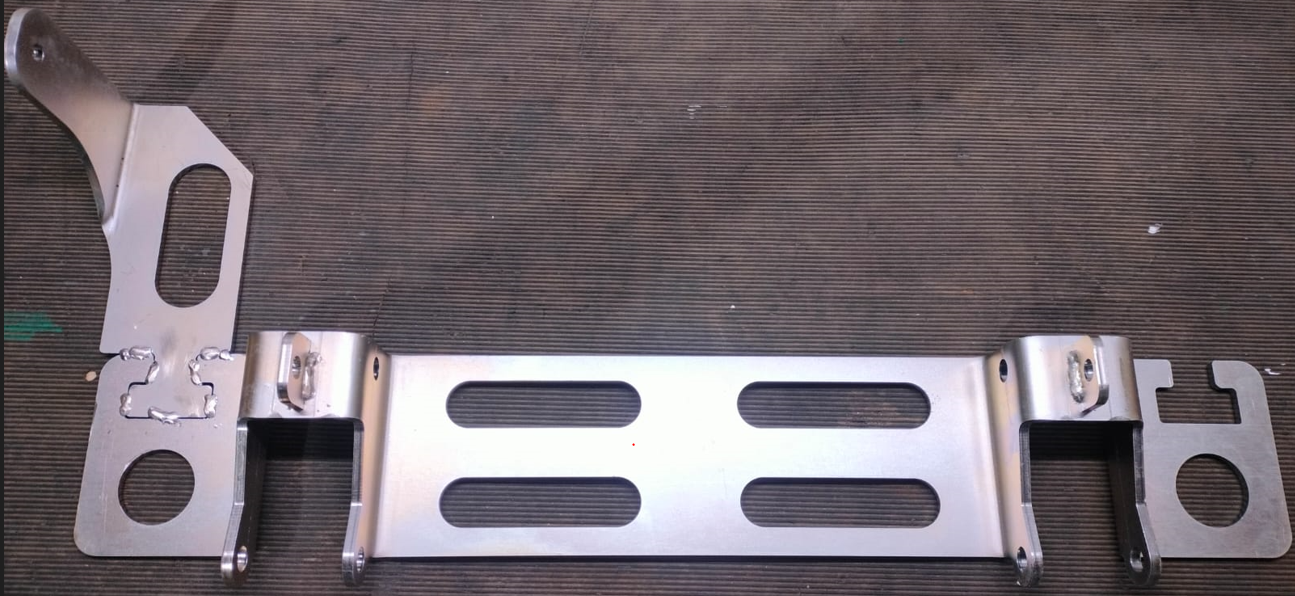

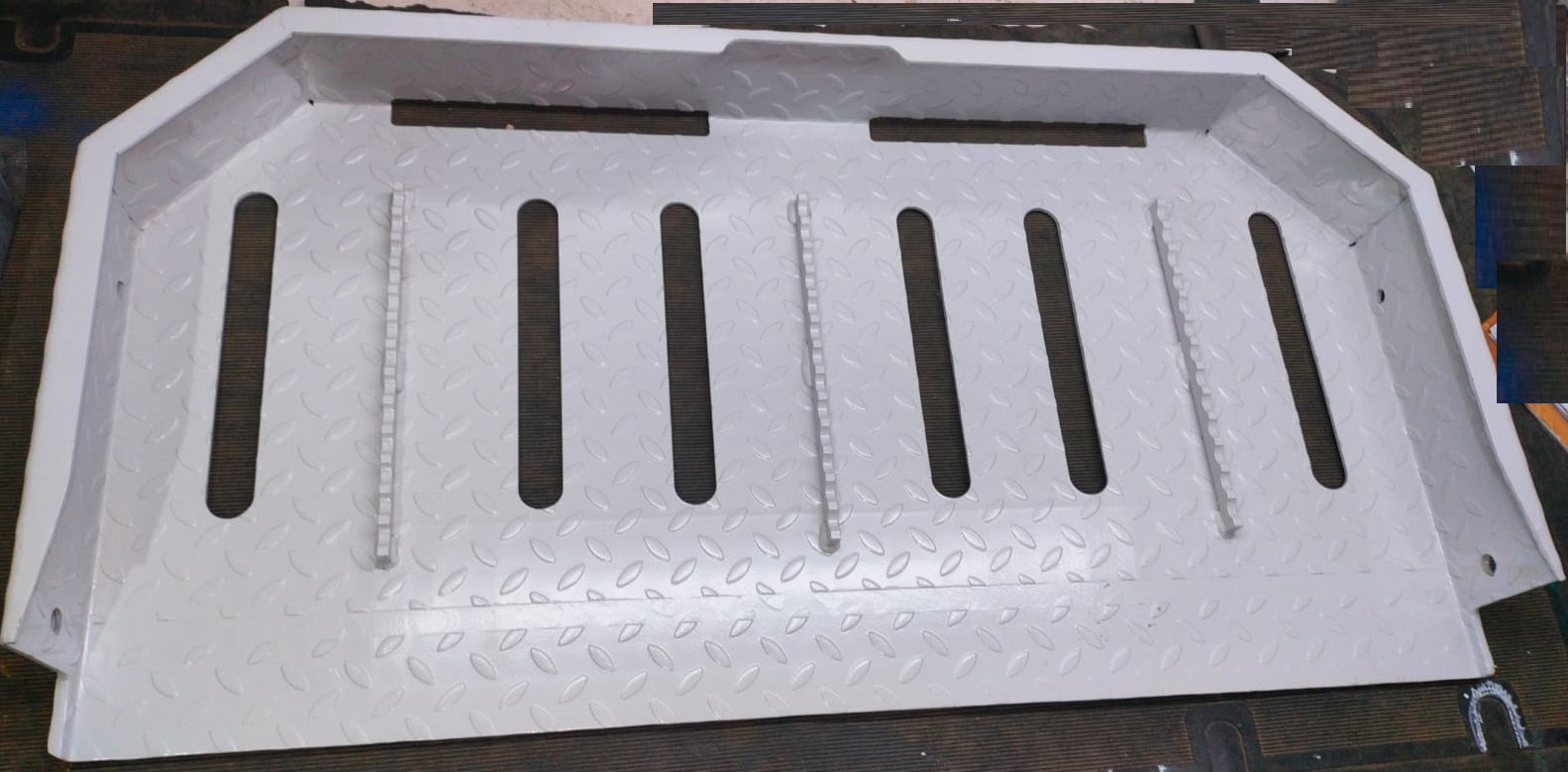

Swt housing, bottom plates, supports, filler necks, battery brackets, and console steps.

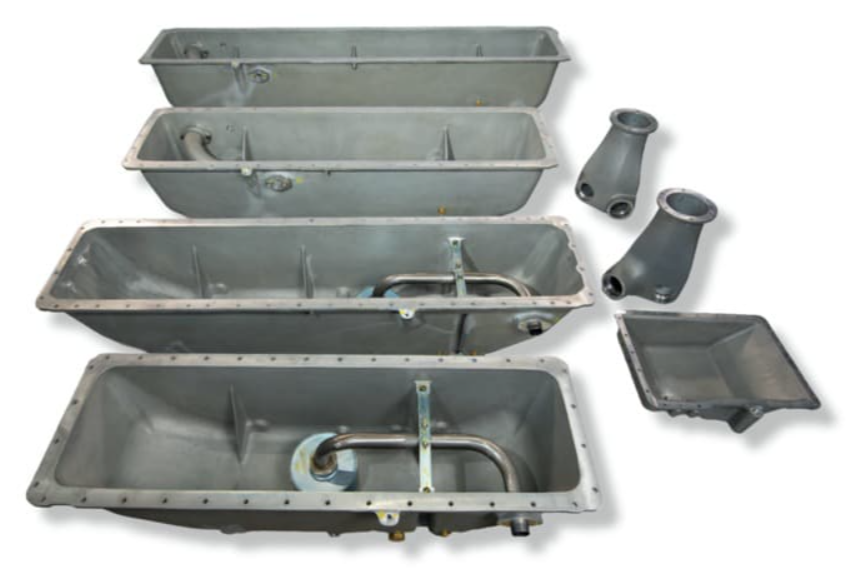

Kirloskar

Rototiller lower cover plates, fork assemblies, front guard assemblies, and gear shifter covers.

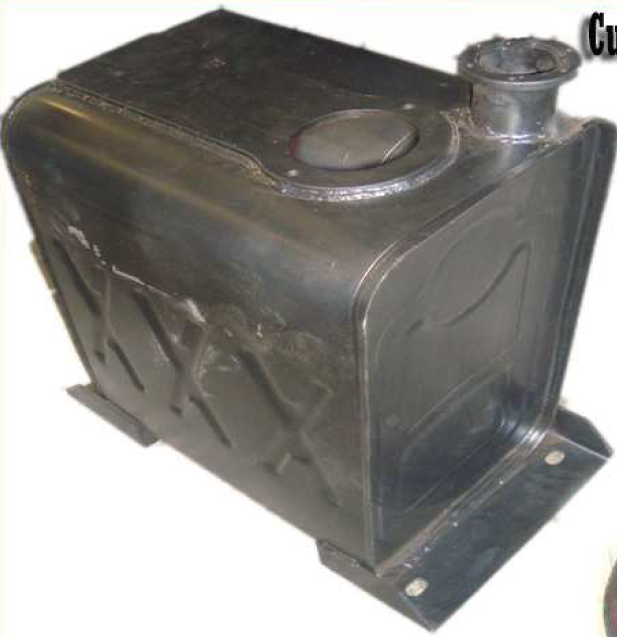

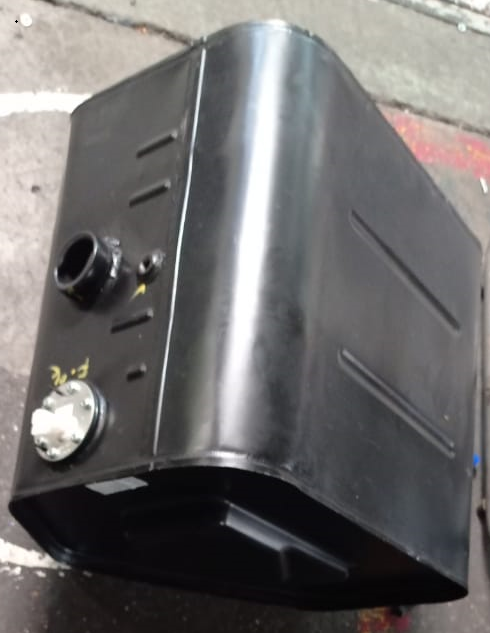

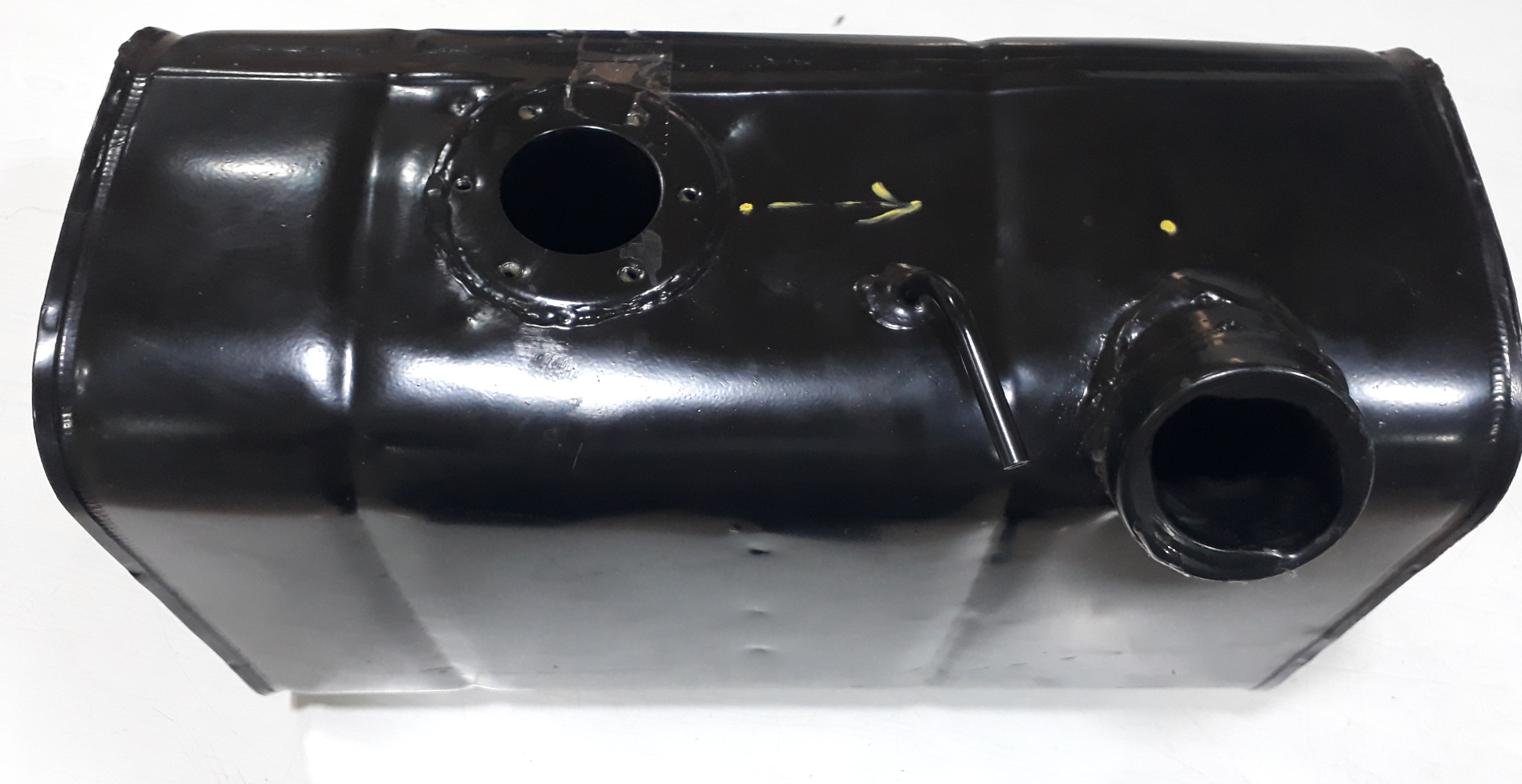

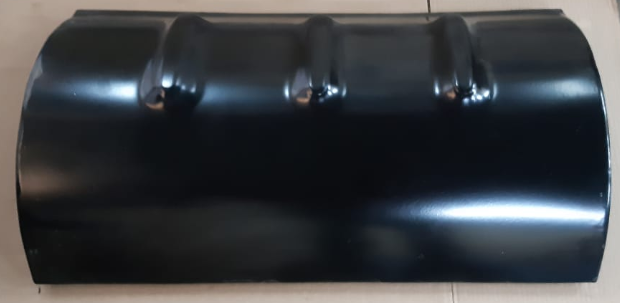

Fuel Tanks

Force Motors and Tata Motors application parts including 14 LTR, 35 LTR, 45 LTR, 50 LTR, and 75 LTR tanks.

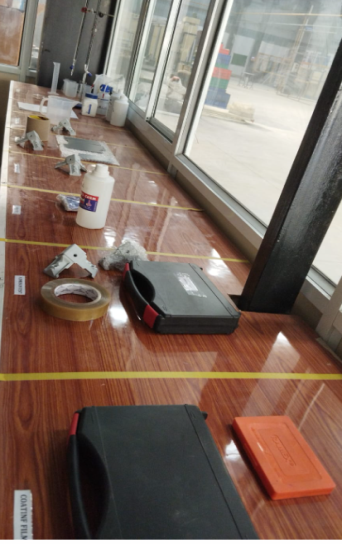

Quality Control

Testing equipment for coating, surface, and process verification.

JSSEPL uses documented quality control procedures and lab equipment for routine inspection, coating thickness checks, adhesion validation, and process monitoring.

DFT Meter Cross-hatch Cutter Gloss Meter Spectrometer DS-220 Impact Tester Conical Mandrel Bend Tester pH Meter Lux Meter Surface Roughness Tester Chemical Titration
